Description

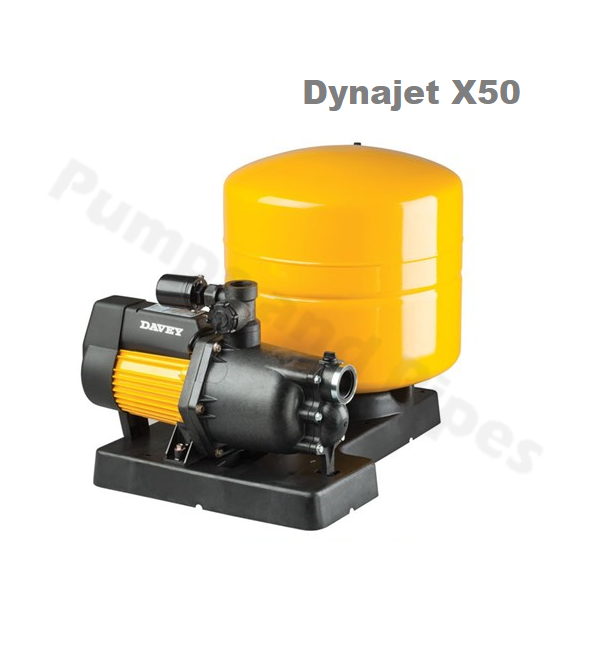

Robust & compact, four stage, centrifugal pump wit Torrium2 constant flow control and loss of prime device for automatic water pressure.
Designed for medium to large, single and multi-Storey homes.
Applications:
Ideal for pumping clean, non-volatile liquids without fibres or solids in such applications as –
Household water supply
Irrigation
Water Transfer
Washing Systems
Pressure boosting
Motor: 0.45kW, 240V, 50Hz, Single Phase, IP56
Pump Performance: HP45-05T  – 2850 rpm
Features:
Easy non-tradesmen installation and assembly
Positive safety under varied weather conditions
All parts manufactured from safe, corrosion resistant materials
Compliance with requirements of ISO 9001.2000 quality standards ensures consistency of quality of the system
Air purging valve for easy installation and priming
Pump – High efficiency, quiet impeller in 4 stages design in two flow rate ranges for:
More pressure in home outlets
Choice of performance options to suit most homes
Quieter household environment
Improved waterway clearances to reduce impeller blockages
Operating Limits:
Maximum system pressure* 700kPa
Capacities to 110 lpm
Maximum total head 35m
Maximum suction head 4m
Maximum ambient temperature 50ºC
Maximum water temperature 50ºC
Minimum water temperature 1ºC
Torrium2 cut-in pressure is normally 80% of the pumps last shut-off head.
Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Manufacturer’s Warranty: 2 Years

Additional information
