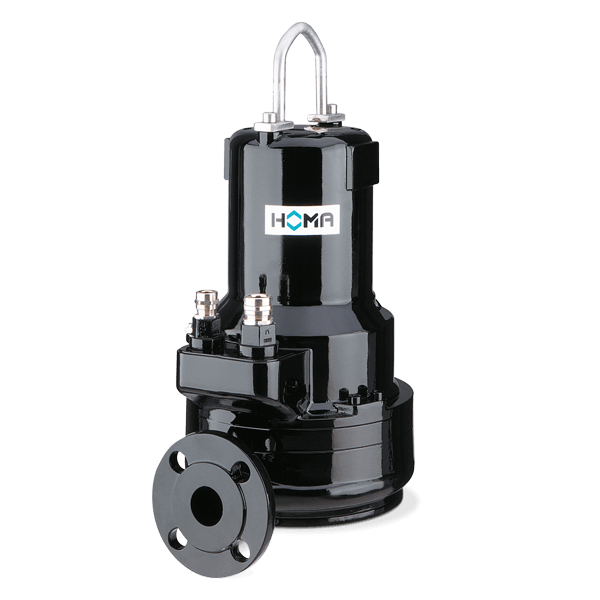

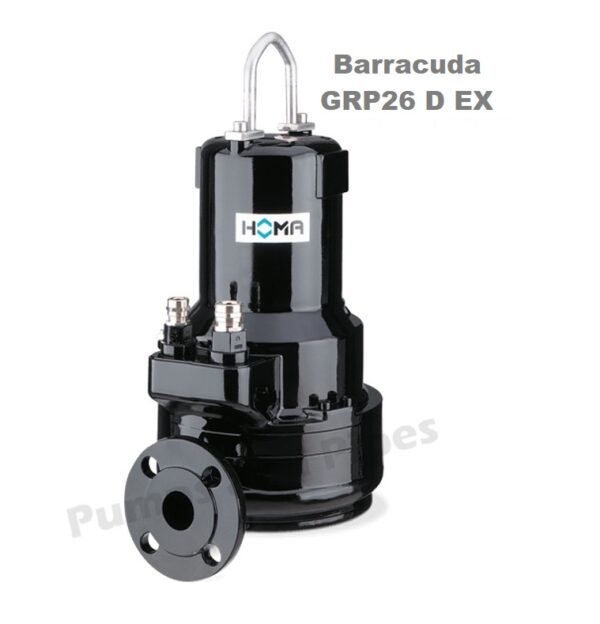

HOMA Barracuda GRP26 D EX Three Phase 400/3/50 Sewage Grinder Pump – Replacements Available In Stock
HOMA GRP26 D cuts all solids present in the sewage into small particles
Pump performance: 2.o lps @ 24 metres
Pump performance: 3.o lps @ 20 metres
Pump with horizontal discharge 50mm M BSP
Cutter system at pump inlet
Impeller is open multi-channel
Power: 400/3/50 FLC 4.4 A
Motor rating: P1 2.5kW P2 1.9kW
Manufacturer’s warranty: 12 months
- Description
- Additional information
- Downloads
Description
HOMA GRP26 D provides the perfect economical solution with Barracuda grinder pumps.
The Barracuda pumps cut all solids present in the sewage into small particles
Pump performance: Shut off head 32m
Pump performance: 1.o lps @ 28 metres
Pump performance: 2.o lps @ 24 metres
Pump performance: 3.o lps @ 20 metres
Pump performance: 4.o lps @ 16 metres
Pump: single stage centrifugal with horizontal discharge 50mm M BSP
Cutter system at pump inlet consisting pf stationary cutter ring and blade rotor
Impeller is open multi-channel
Motor is fully submersible, pressure tight electric motor
Thermal sensors embedded in stator winding.
Insulation H IP68
Power: 400/3/50 FLC 4.4 A
Maximum liquid temperature 40deg C
Operation: continuous
Manufacturer’s warranty: 12 months
Additional information
| Weight | 44 kg |
|---|---|
| Dimensions | 40 × 40 × 60 cm |
