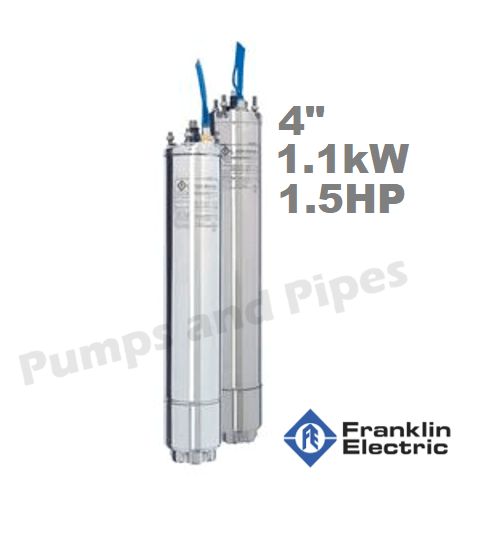

Franklin 4″ 1.1kW 1.5HP Three Wire + E Single Phase 240/1/50 Submersible Bore Motor CS-CR SKU 2247506722A – 3C + E – Motor PSC SKU 2548196721A
$1,280.00 – $1,320.00
1.1kW 1.5HP 4″ Standard Submersible Motor – CS-CR panel required
2247506722A : CS-CR 3 wire + E motor requires a control panel with two capacitors for starting
Control panel: part number 282360119 – 10mfd + 105-126mfd capacitors
2548196721A : PSC 3 wire + E motor requires a control panel with one capacitor for starting
Control panel: part number 2846273510 – 40mfd capacitor
1.1 kW 4″ NEMA flange, Outside Diameter 95 mm
Standard voltage: 230 V/50Hz
Insulation: Class F Rated ambient temperature: 30°C
Single Motor lead in 2.5 metre length 3C + Earth
Manufacturer’s warranty: 2 years Franklin USA
- Description
- Additional information
- Downloads
Description
1.1kW 1.5HP 4″ Standard Submersible Motor can be installed on all wet ends with Spline Couplings
Can be used on following pump ends: Franklin, Lowara, Davey, Southern Cross, Dab, Onga, Sta-rite and Grundfos
Type: CS-CR 3 wire + E motor requires a control panel with two capacitors for starting
Control panel: part number 282360119 – 10mfd + 105-126mfd capacitors
Type: PSC 3 wire + E motor requires a control panel with one capacitor for starting
Control panel: part number 2846273510 – 40mfd capacitor
Specifications:
- Hermetically sealed stator, anti track self healing stator resin prevents motor burn out
- Removable Water Bloc™ lead connector
- Cable material according to drinking water regulations (VDE/ACS/KTW approved)
- All motors are prefilled with water and 100% tested
- Single phase 2 pole motor IP68
Technical Specifications
1.1 kW 4″ NEMA flange, Outside Diameter 95 mm
- Starts per hour: max. 10 vertical or horizontal installation
- Standard voltage: 230V/50Hz FLC
- Locked rotor
- Voltage tolerance 50 Hz: 230Volt AC -10% / +6%
- Insulation: Class F Rated ambient temperature: 30°C
- Single Motor lead in 2.5 metre length 3C + Earth (VDE/ACS/KTW approved)
- Types of starting DOL
Motor cable of any length can be added for ease of installation
Manufacturer’s warranty: 2 years Franklin USA
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Franklin |
| Size | 2247506722A 1.1kW 3W+E CS-CR motor, 2548196712A 1.1kW 3W+E PSC motor |
