Enclosure: IP54 weatherproof rating, Polycarbonate, Includes mounting brackets
Protection: Low voltage control and input circuitry, No hard wiring needed
Control & interface: Electronic keypad, Indicator lights for rain/mains water
System test button for checking pump and valve function

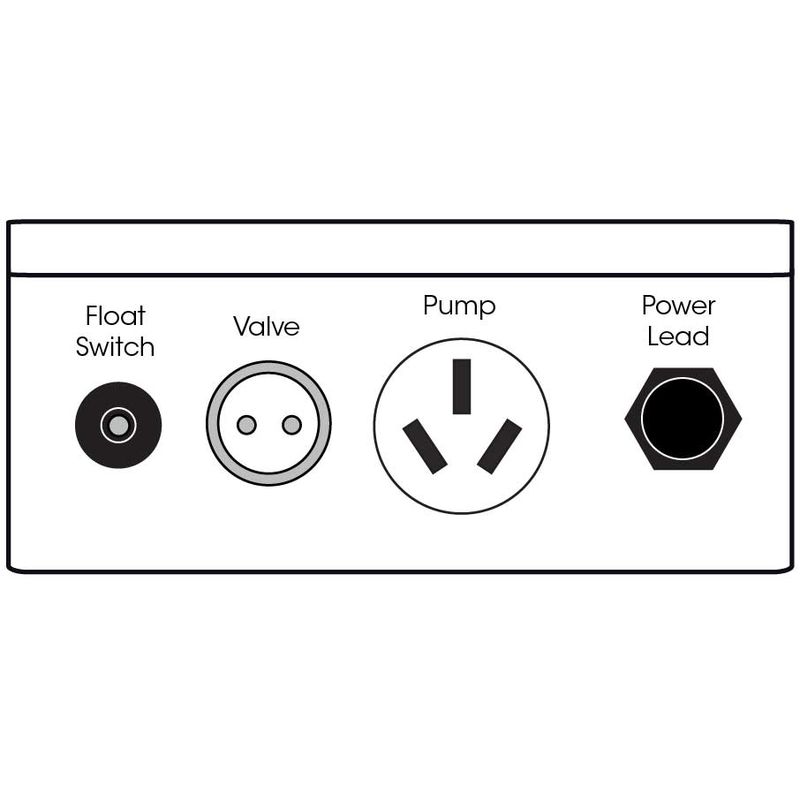

Inputs: Quick plug 12Vdc input for low level float switch
Outputs: GPO for power supply to pump (240Vac 6Amp max), Quick plug 12Vdc output for solenoid valve
Included with panel:

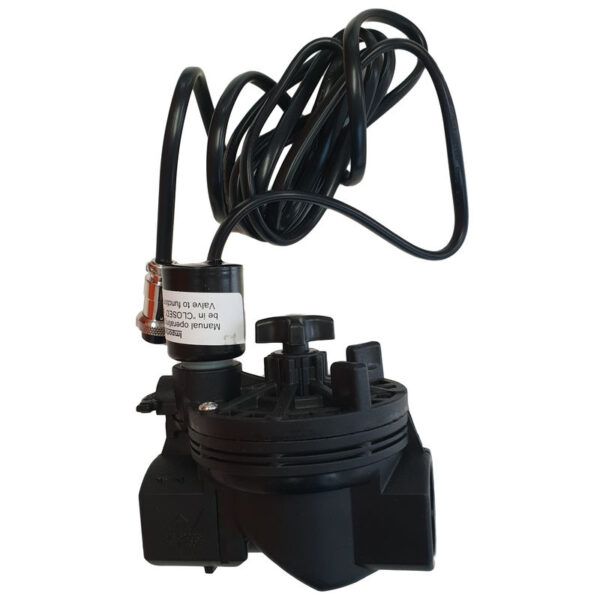

25mm female/female 12Vdc pulse latching solenoid valve (other sizes available)

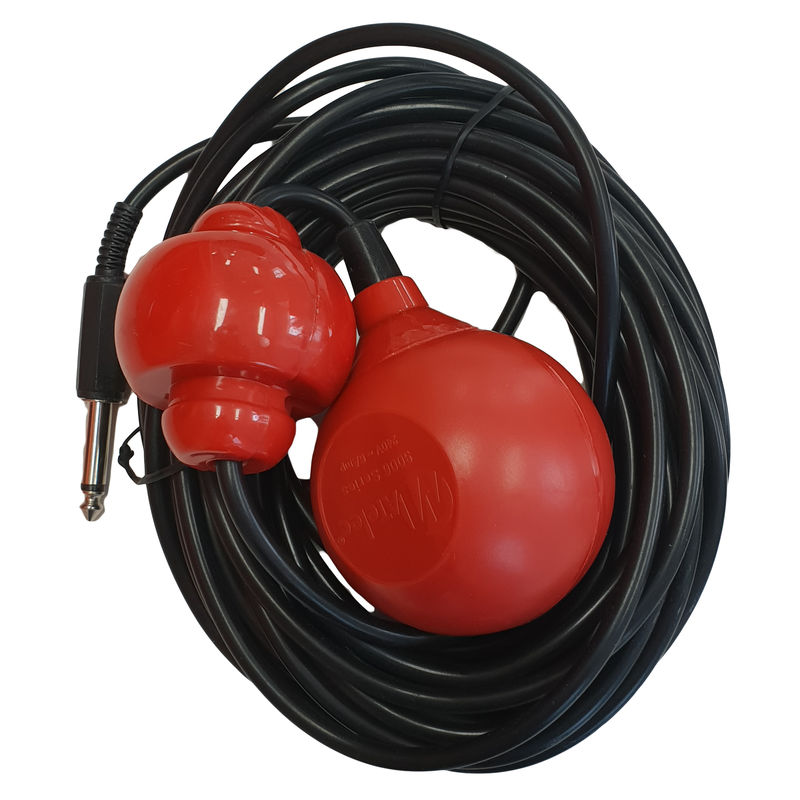

9006 float switch with 10m cable & quick plug connector
10 Amp 3 pin 1.5m power supply lead

Function Features
If rain water becomes available, the controller pulse closes the mains water valve and the pump will run
In the event of rain water depletion or power failure, the controller pulses the valve open for mains water use

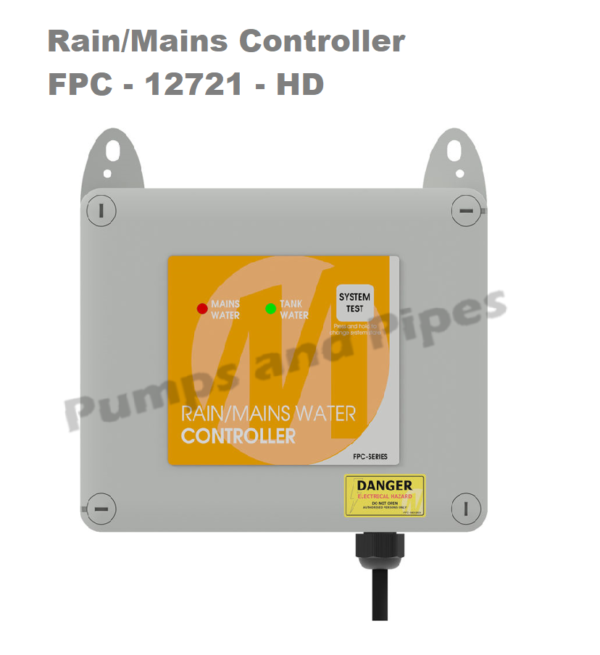

FPC-12721-HD – Single Phase (230Vac)
