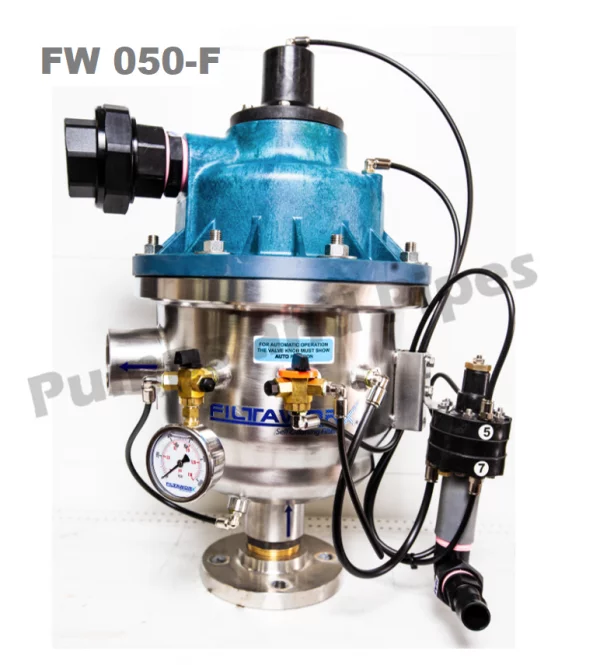

Filtaworx FW050 Fully Automatic Self Cleaning Screen Water Filter – Flow Rate 7.0 lps Max Pressure 10 Bar – FW050F flanged

Filtaworx FW050 Fully Automatic Self Cleaning Screen Water Filter – Flow Rate 7.0 lps Max Pressure 10 Bar – FW050F flanged

$5,434.00$5,852.00

In stock

$5,434.00$5,852.00

Reviews Summary by AI:

FILTAWORX® range of fully automatic self cleaning filters have been designed and built in Australia

Filter Connections:  50mm FI BSP inlet and outlet
Standard Filter:  120 microns
Maximum flow:  7 litres per second
Maximum Working Pressure:  1000 kPa
Minimum Line Pressure:  200 kPa  (30 psi)
Approximate Flush Time: 5-7 seconds, approx. volume 20 litres
Maximum Working Temperature:  65 deg C

Manufacturer’s warranty:  2 years

SKU: FW050
Clear

Description

FILTAWORX® range of fully automatic self cleaning filters have been designed and built in Australia

Maximum flow:  7 litres per second
Maximum Working Pressure:  1000 kPa
Minimum Line Pressure:  200 kPa  (30 psi)
Approximate Flush Time: 5-7 seconds, approx. volume 20 litres
Maximum Working Temperature:  65 deg C

Features include:
▲ Stainless steel filter body as standard
▲ All parts are made of corrosion resistant materials
▲ Fully automatic back flush operation
▲ Hydraulic controls
▲ Large filtration area
▲ Wide range of fine screen sizes, 50 to 800 microns
▲ Full support and after sales service

Selecting the right FILTAWORX® filter for your particular application is crucial in achieving the best result.

The following information will help you make the correct selection.
1. The application and equipment you are protecting.
2. Maximum and minimum flow rate that the filter will need to handle.
3. System operating pressure, and pump details/curve if available.
4. Level of filtration/screen size required.
5. Dirt loading (Total Suspended Solids – TSS) of the water, if known.
6. Type of solids that are present, i.e. sand, algae, paper fibre, etc.
7. Filter control logic other than standard that may be required.
8. Water temperature and any chemical/corrosiveness content if known.

Manufacturer’s warranty:  2 years

Additional information

Weight30 kg
Dimensions45 × 60 × 40 cm
Size

FW050 FBSP 50mm Hydraulic controlled filter, FW050-HV FBSP 50mm Hydraulic controlled filter, FW050F flanged 50mm Hydraulic controlled filter, FW050F-HV flanged 50mm Hydraulic controlled filter
