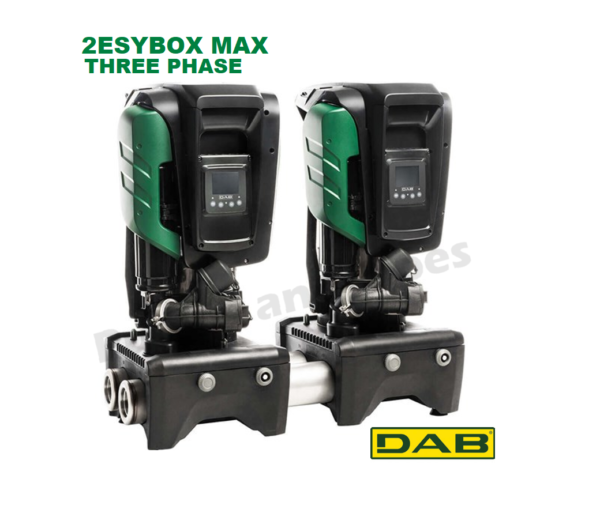

Dual VFD 5 lps @ 60 metres head DAB-2ESYBOX MAX 85/120T for Water Supply to Buildings, Large Homes , Caravan Sites and Nurseries

Dual VFD 5 lps @ 60 metres head DAB-2ESYBOX MAX 85/120T for Water Supply to Buildings, Large Homes , Caravan Sites and Nurseries

$11,440.00

In stock

$11,440.00

View cart

The DAB ESYBOX MAX is the latest innovation in the DAB Esyline range.

Integrated pumping systems for water supply for commercial buildings, industry and for rural and horticultural applications
Single Pump Performance:  2.0 lps @ 800 kPA
Single Pump Performance:  3.0 lps @ 400 kPA
Power supply:  400/3/50
Easy to assembly on a docking station
Quick supply for urgent installations

Manufacturer Warranty:  2 years  Made in Italy

SKU: 809540 + 809530

Description

The DAB ESYBOX MAX is the latest innovation in the DAB Esyline range.

Integrated pumping systems for water supply for commercial buildings, industry and for rural and horticultural applications
Single Pump Performance:  2.0 lps @ 800 kPA
Single Pump Performance:  3.0 lps @ 400 kPA
Maximum operating pressure: 1200kpa
Type of pumped liquid: clean, free from solids, non aggressive liquids
Maximum liquid temperature: 50 deg C
Power supply:  400/3/50
Motor protection: IP55 Class F insulation

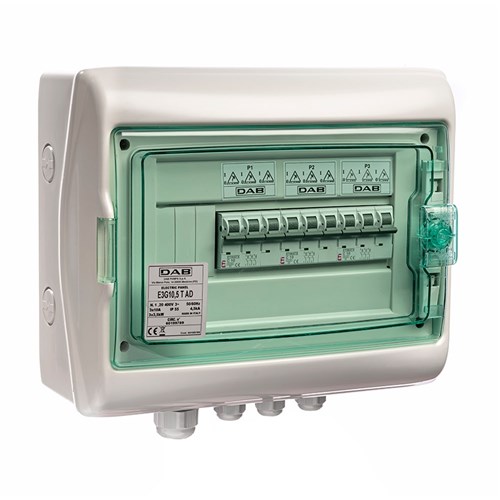

Electrical Isolation (distribution) panel supplied

Easy to assembly on a docking station
Quick supply for urgent installations

Manufacturer Warranty:  2 years  Made in Italy

Additional information

Weight140 kg
Dimensions120 × 100 × 120 cm

Dual DAB-2ESYBOX MAX 85/120T performance

Download

DAB-2ESYBOX MAX 85/120T dimensional drawing

Download
