Dual Poly Floats for Single Suction Line – 160 mm 200 mm 315 mm – Pump Footvalve Float – Pontoon System for Pumps
$1,220.00 – $1,850.00

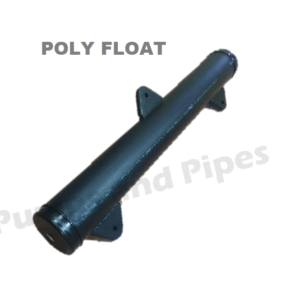

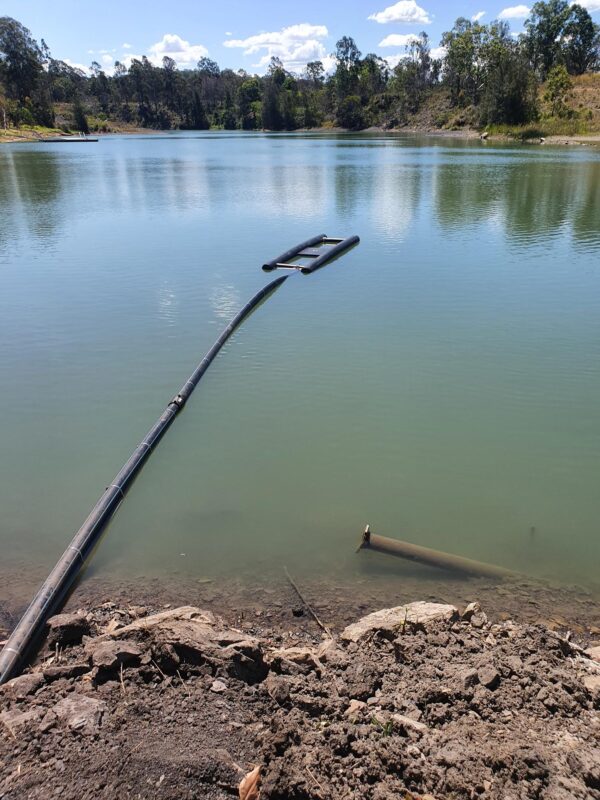

Dual Poly Float to hold up a foot valve or pump suction line
Dual 160mm HDPE x 1.5metre float with supports
Dual 200mm HDPE x 2.0metre float with supports
Dual 200mm HDPE x 2.4metre float with supports
Dual 315mm HDPE x 2.0metre float with supports
Dual 315mm HDPE x 3.0metre float with supports
- Description
- Additional information
- Downloads
Description
Dual Poly Float to hold up a foot valve or pump suction line
When selecting a float calculate the weight of footvalve, fittings and water weight
Try and select a float that has a 50% draft, this way the float will not sink
PFDCV16015 Dual 160mm HDPE x 1.5metre float …. 40kg @ 50% draft
PFDCV20020 Dual 200mm HDPE x 2.0metre float …. 50kg @ 50% draft
PFDCV20024 Dual 200mm HDPE x 2.4metre float …. 60kg @ 50% draft
PFDF31520 Dual 315mm HDPE x 2.0metre float …. 130kg @ 50% draft
PFDF31530 Dual 315mm HDPE x 3.0metre float …. 180kg @ 55% draft
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 160mm x 1.5m single poly float with locators, 200mm x 1.5m Dual poly float with joined with supports, 200mm x 2.4m Dual poly float with joined with supports, 315mm x 2.0m Dual poly float with joined with supports, 315mm x 3.0m Dual poly float with joined with supports |
