Description

duijvelaar pump high pressure pump

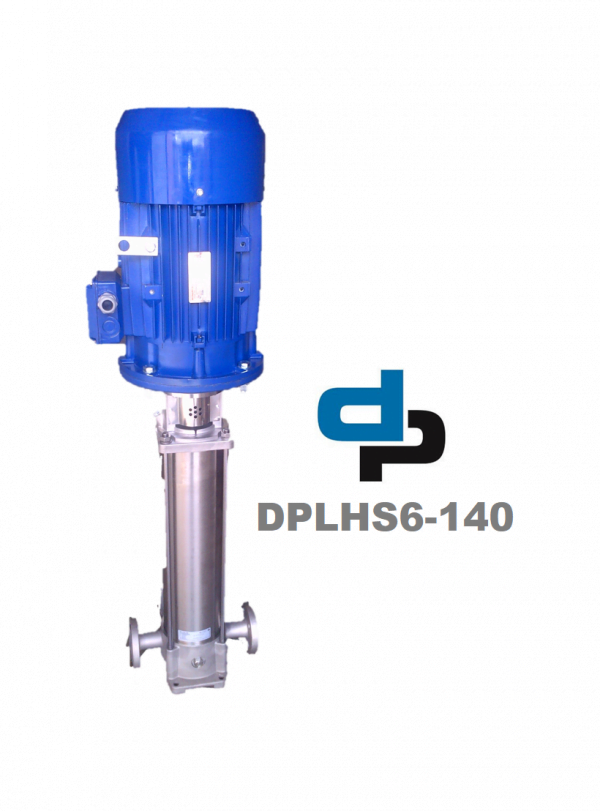

The vertical multistage pump series DPLHS is designed for pumping clean liquids.
Suction and discharge of the pump are in-line, making the pump easy to install.
The hydraulic assembly is installed vertically and driven by an electric motor.
All hydraulic parts of the pump are made of stainless steel, making the pump light and extremely suitable for applications that demand high grade materials, such as drinking water applications.

Boiler feed , Jacking Pump in fire systems and water supply for RO applications

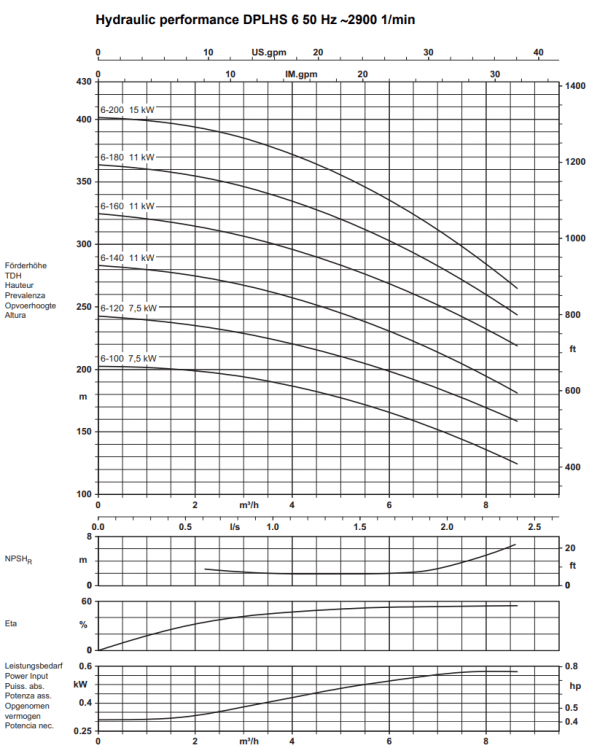

Pump performance:  Shut off head @ 282 metres  (no flow)
Pump performance:  1.0 lps @ 260 metres
Pump performance:  2.0 lps @ 210 metres

Complete AISI316 stainless steel pump end
11.0kW 400/3/50 three phase supply
Temperature range:  -5 to 80degC

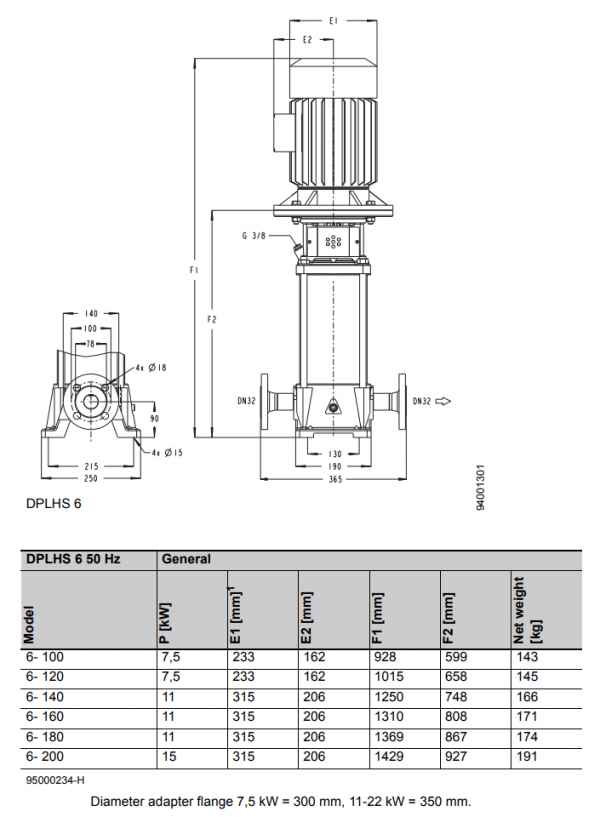

AISI316 SS, DN32 PN40 flanged connectors

Manufacturer’s warranty:  2 years  Made in The Netherlands
