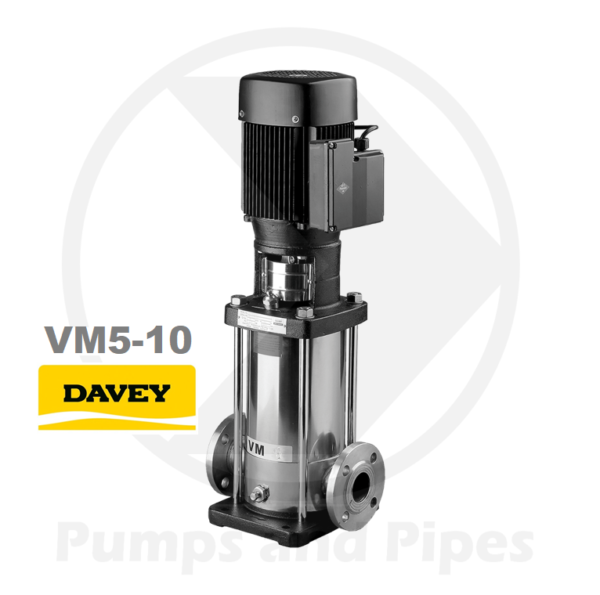

Davey VM5-10 2.2kW Three Phase Vertical Multistage Pump

Davey VM5-10 2.2kW Three Phase Vertical Multistage Pump

In stock

Vertical multistage centrifugal pump which is used for water supply and irrigation applications

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Pump performance:  60 lpm @ 410 kPa  (1.0lps)
Pump performance:  90 lpm @ 340 kPa  (1.5lps)

AS4020 approved for use in drinking water
Power supply:   2.2kW 415V three phase 50hz FLC  5A
Manufacturer’s warranty:  2 years

SKU: VM5-10T

Description

Vertical multistage centrifugal pump which is used for municipal and building water supply, wash down and irrigation applications

Pump performance:  Shut off head  1020 kPa no flow – maximum pressure
Pump performance:  36 lpm @ 930 kPa  (0.6lps)
Pump performance:  60 lpm @ 820 kPa  (1.0lps)
Pump performance:  90 lpm @ 660 kPa  (1.5lps)
Pump performance:  120 lpm @ 480 kPa  (2.0lps)


AS4020 approved for use in drinking water

Material of construction:  SS/SS/SS
Power supply:   2.2kW 415V three phase 50hz FLC 5A
Impeller material: AISI304 stainless steel
Suction connection:  DIN32 Flanged
Discharge connection:  DIN32 Flanged
Starting method:  DOL
Maximum temperature:  90 deg C
Can be used to replace other brands of multistage pump units

Manufacturer’s warranty:  2 years

Additional information

Weight40 kg
Dimensions80 × 40 × 40 cm
Brand

Davey

VM 5 Curve

Download

VM Dimension table

Download

VM5 pump dimension

Download
