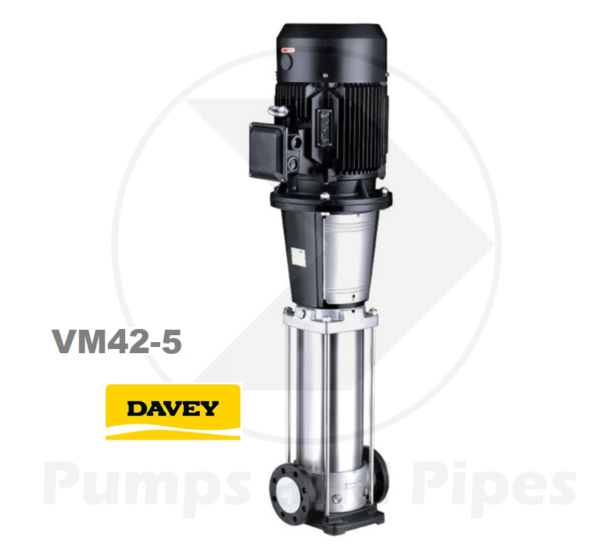

Davey VM42-5 18.5kW 80mm Flanged Vertical Multistage Pump

Davey VM42-5 18.5kW 80mm Flanged Vertical Multistage Pump

In stock

Vertical multistage centrifugal pump which is used for water supply and irrigation applications

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Pump performance:  12.5 lps @ 970 kPA
AS4020 approved for use in drinking water
Power supply:   18.5kW 415V three phase 50hz FLC 31.3 amps
Manufacturer’s warranty:  2 years

SKU: VM42-5

Description

Vertical multistage centrifugal pump which is used for municipal and building water supply, wash down and irrigation applications

Pump performance:  Shut off head  1260 kPA no flow – maximum pressure
Pump performance:  7.5 lps @ 1180 kPA
Pump performance:  10.0 lps @ 1040  kPA
Pump performance:  15.0 lps @ 880  kPA


AS4020 approved for use in drinking water

Material of construction:  SS/SS/SS – AISI304
Power supply:   18.5kW 415V three phase 50hz FLC 31.3 amps
Impeller material: AISI304 stainless steel
Suction connection:  DIN80 PN25 Flanged
Discharge connection:  DIN80 PN25 Flanged
Starting method:  VSD or soft starter
Maximum temperature:  90 deg C
Can be used to replace other brands of multistage pump units

Manufacturer’s warranty:  2 years

Additional information

Weight230 kg
Dimensions160 × 50 × 50 cm
Brand

Davey

VM42 curve

Download

VM Dimension table

Download

VM42 pump dimension

Download
