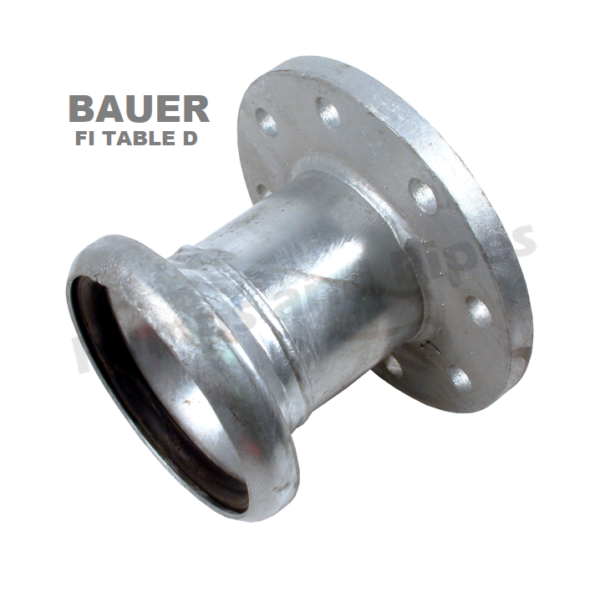

Bauer Type Female FI with Table D Flange sizes 2″ 3″ 4″ 6″ 8″
$164.00 – $385.00
Heavy Duty Galvanised Bauer Type Fitting
2″ Bauer Type FI with Table D flange
3″ Bauer Type FI with Table D flange
4″ Bauer Type FI with Table D flange
6″ Bauer Type FI with Table D flange
8″ Bauer Type FI with Table D flange
O’ring seal is not included, can be purchased separately
- Description
- Additional information
- Downloads
Description
Heavy Duty Bauer Type FI with Table D flange
Mild steel hot dipped galvanised
Rapid connect and disconnect of fittings on suction and delivery hoses 2″, 3″, 4″, 6″and 8″
Double pin locking lever for smooth closing action
Equipped with a safety pin to prevent accidental openings
Easy installation
Suitable for transferring water, slurries, powder, sewerage and granules in irrigation, mining and industrial areas
Max offset angle up to 30° articulation at joint when installing, can handle medium levels of vacuum.
Working pressures up to 2200 kPA ( approx. 300psi )
O’ring seal is not included, can be purchased separately
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 2" Female with Table D flange, 3" Female with Table D flange, 4" Female with Table D flange, 6" Female with Table D flange, 8" Female with Table D flange |
