Bauer Type Female FI x MI BSP – Heavy Duty Galvanised Hose Dewatering Fitting 2″ 3″ 4″ 6″ 8″

Bauer Type Female FI x MI BSP – Heavy Duty Galvanised Hose Dewatering Fitting 2″ 3″ 4″ 6″ 8″

$24.00$148.00

In stock

$24.00$148.00

Clear
View cart

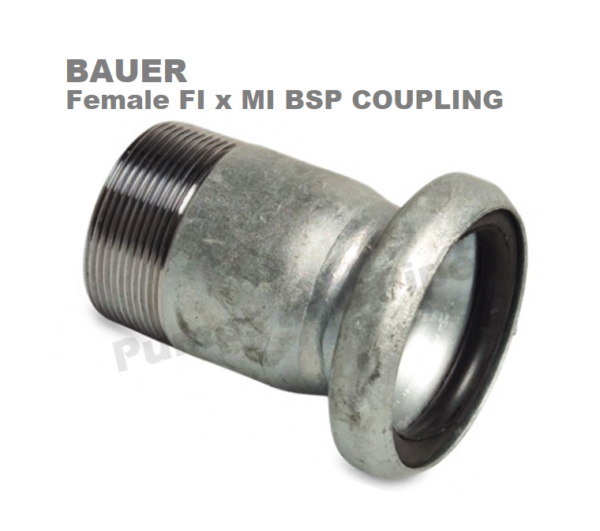

Galvanised Bauer Type Fitting

50mm Bauer Type FI Coupling x 50mm MI BSP Thread
75mm Bauer Type FI Coupling x 80mm MI BSP Thread
100mm Bauer Type FI Coupling x 100mm MI BSP Thread
150mm Bauer Type FI Coupling x 150mm MI BSP Thread
200mm Bauer Type FI Coupling x 200mm MI BSP Thread

O’ring seal is not included, can be purchased separately

SKU: N/A

Description

Mild steel hot dipped galvanised
Rapid connect and disconnect of fittings on suction and delivery hoses
Double pin locking lever for smooth closing action
Equipped with a safety pin to prevent accidental openings
Easy installation
Suitable for transferring water, slurries, powder, sewerage and granules in irrigation, mining and industrial areas
Max offset angle up to 30° articulation at joint when installing, can handle medium levels of vacuum
Maximum working pressures up to 2200 kPA ( 300psi )

O’ring seal is not included, can be purchased separately

Additional information

WeightN/A
DimensionsN/A
Size

100mm 4inch BAUER Female x 100mm MI BSP, 150mm 6inch BAUER Female x 150mm MI BSP, 200mm 8inch BAUER Female x 200mm MI BSP, 50mm 2inch BAUER Female x 50mm MI BSP, 75mm 3inch BAUER Female x 80mm MI BSP
