30lps @ 20 metres UMDNSS11000/100/3 316 Stainless Steel Submersible Pump For Corrosive Brackish Applications – Manual

30lps @ 20 metres UMDNSS11000/100/3 316 Stainless Steel Submersible Pump For Corrosive Brackish Applications – Manual

$12,320.00

In stock

$12,320.00

Clear
View cart

We use these pumps in underground basements where seawater or brackish river water is seeping into underground basements
Stainless steel pumps that replace existing cast iron sump pumps

Pump performance: 900 lpm @ 42 metres
Pump performance: 1200 lpm @ 38 metres
Pump performance: 1800 lpm @ 20 metres

Material:  AISI316 cast stainless steel
Pump outlet:   80mm or 100mm flanged
Electrical data:  11.0kW 400/3/50 FLC 21.6 amps IP68 2pole
Motor lead:  10 metres H07RN-F rubber cable
Pump installation:  Free standing or auto coupling

Manufacturer’s warranty:  2 years   Made in Taiwan

SKU: UMDNSS5500/80/3--1

Description

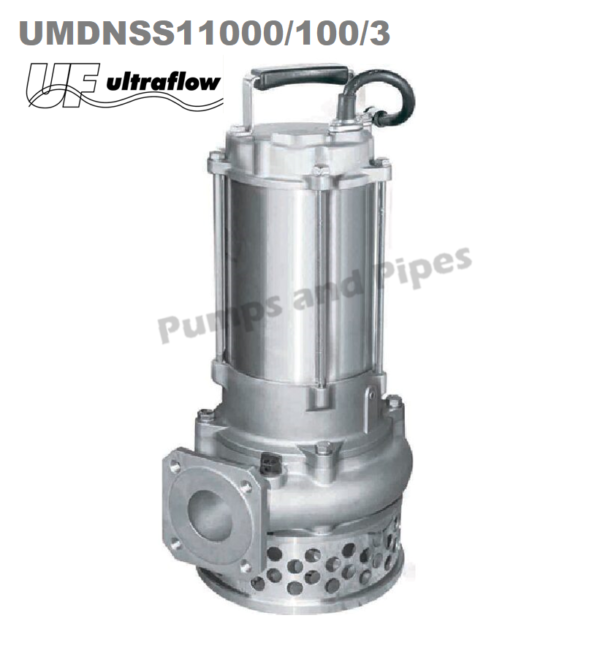

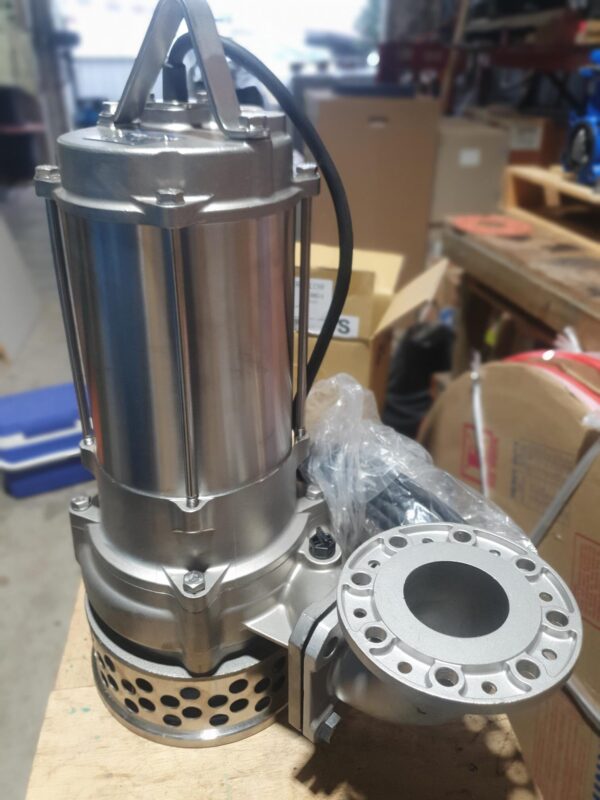

UMDNSS11000/100/3 AISI316 Stainless Steel Drainage Sump Pump

SS pump are suitable for Sit Dewatering, Basement and sump drainage, Horticulture and Aquaculture and water transfer

We use these pumps in underground basements where seawater or brackish river water is seeping into underground basements
Sea water fountain or display, aquaculture water transfer
Stainless steel pumps that replace existing cast iron sump pumps

Pump performance: zero flow @ 53 metres  shut off head
Pump performance: 600 lpm @ 47 metres
Pump performance: 900 lpm @ 42 metres
Pump performance: 1200 lpm @ 38 metres
Pump performance: 1800 lpm @ 20 metres

Pump outlet:  80mm or 100mm flanged
Solid passage:  20 mm
Electrical data:  11.0kW 400/3/50 FLC 21.6 amps IP68 2pole
Protection: External overload required three phase,
Motor lead:  10 metres 3C + E H07RN-Frubber cable
Starting method:  DOL
Maximum submergence: 10 metres
Pump installation:  Free standing or auto coupling

Manufacturer’s warranty:  2 years   Made in Taiwan

Additional information

Weight110 kg
Dimensions50 × 40 × 60 cm
Brand

Ultraflow

Size

100mm flanged outlet 11.0kW 400/3/50, 80mm flanged outlet 11.0kW 400/3/50

Ultraflow Submersible Sump Pump Range INSTALLATION

Download

UMDNSS7500/80/3 data sheet
