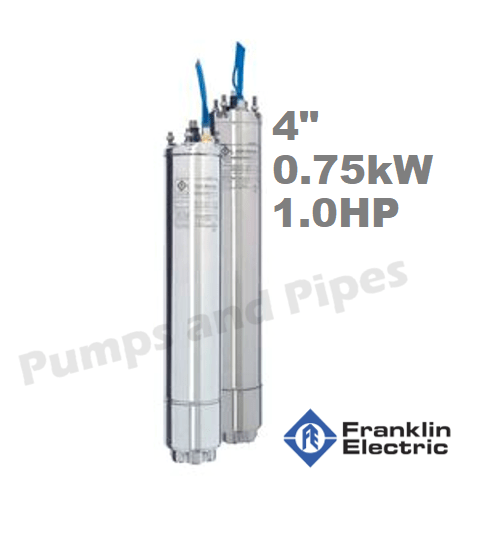

2 Wire 0.75kW 4″ Single Phase Franklin Submersible Bore Pump Motor 2W 1HP

2 Wire 0.75kW 4″ Single Phase Franklin Submersible Bore Pump Motor 2W 1HP

$795.00

In stock

$795.00

Reviews Summary by AI:

0.75kW 1.0HP 4″ Single Phase Submersible Motor can be used on Franklin, Lowara, Davey and Grundfos pumps

No control panel required for starting
All motors are pre-filled with water and 100% tested
Power supply 240 volts single phase FLC 5.0 Amps
Electrical cable of longer length can be added, contact us for details
Manufacturer’s warranty:  2 years   Made in USA

SKU: 2445581203S

Description

0.75kW 1.0HP 4″ Single Phase 2 Wire Submersible Motor can be installed on all wet ends with Spline Couplings.
Can be used on following pump ends: Franklin, Lowara, Davey, Southern Cross, Dab, Onga, Wilo and Grundfos

Specifications:

  • Hermetically sealed stator, anti track self healing stator resin prevents motor burn out
  • Removable Water Bloc™ lead connector
  • Cable material according to drinking water regulations (VDE/ACS/KTW approved)
  • All motors are prefilled with water and 100% tested
  • Single phase 2 pole motor
    Technical Specifications:
  • 0.75 kW 4″ NEMA flange, Outside Diameter 95 mm
  • Starts per hour: max. 10 vertical or horizontal installation
  • Standard voltage: 240 V/50Hz FLC 5.0 Amps
  • Voltage tolerance 50 Hz: 230 Volt AC -10% / +6%
  • Insulation: Class F Rated ambient temperature: 30°C
  • Single Motor lead in 2.5 meter length 2C + Earth (VDE/ACS/KTW approved)
  • Types of starting DOL

Motor cable of longer length can be added for ease of installation, contact us for details

Manufacturer’s warranty:  2 years   Made in USA

Additional information

Weight12 kg
Dimensions45 × 11 × 11 cm
Brand

Franklin

Franklin 4" motors

Download
