Submersible cable 3C+E 2.5mm² 50m RVK04/2.550 & 100m RVK04/2.5100 – RVK Flexible PVC outer sheath – Three Phase Lead – Heat Shrink
$88.00 – $2,398.00
To supply power in demanding applications in the lighting industry and submersible pumps.
3C + E cable x 2.5 mm² conductors or described as 3C + Earth
RVK04/2.550 … 50 metres of cable
RVK04/2.5100 … 100 metres of cable
RVK04/2.5300 … 300 metres of cable
9.8mm nominal diameter
Current ratings: 26 amps
- Description
- Additional information
- Downloads
Description
To supply power in demanding applications in industrial applications and submersible pumps

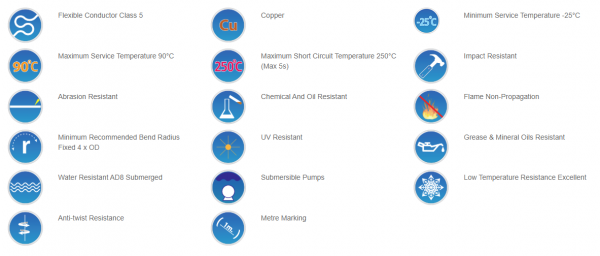

Construction
- Conductor – Electrolytic copper, class5 (flexible), based on EN 60228
- Insulation – XLPE
- Sheath – Flexible PVC outer sheath, black colour
- 4C – Brown, black, grey, yellow/green
- or described as 3C + Earth
Ratings
- Temperature: -15°C to + 90°C
- Voltage: 0.6/1kV
- Applicable Stands: IEC 60502/UNE 21123-2
Additional information
| Weight | 70 kg |
|---|---|
| Dimensions | 60 × 60 × 40 cm |
| Size | 2.5mm2 3C+E 300m RVK cable, 2.5mm2 3C+E submersible cable 100metres, 2.5mm2 3C+E submersible cable 50metres, Heat Shrink Kit 1.5mm2 2.5mm2 |
