Water Truck Self Priming Hydraulic Driven 4inch Pump – Semi Trash Pump 7kW Low Head

Water Truck Self Priming Hydraulic Driven 4inch Pump – Semi Trash Pump 7kW Low Head

$5,760.00

In stock

$5,760.00

View cart

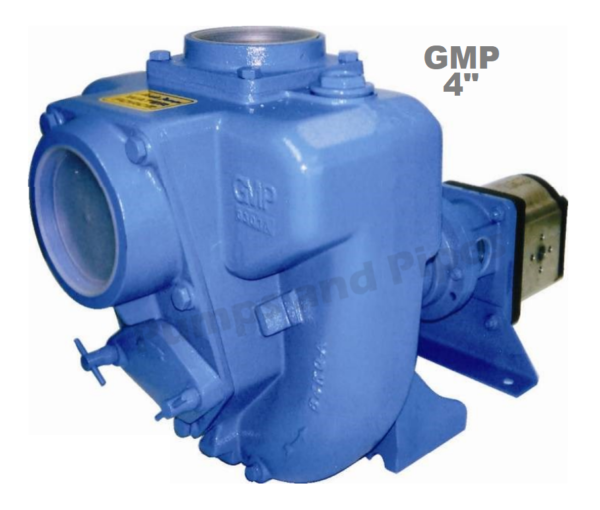

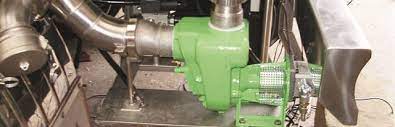

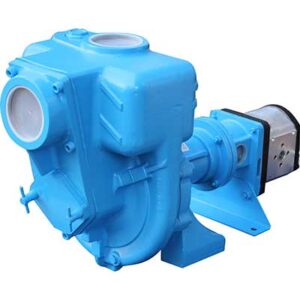

4″ Cast iron pump coupled to hydraulic driven motor to suit water truck

Self Priming to 6 metres

Pump performance: 600 lpm @ 120 kPA
Pump performance: 100 lpm @ 80 kPA
Pump connections:  Suction and discharge 100mm FI BSP
Impeller:  Open non clog style impeller
Italian made hydraulic motor
Motor requirements @ 1320rpm – 7.0Kw

Manufacturer’s warranty:  3 years

SKU: GB4KQ-A/ST HYD22

Description

4″ Cast iron pump coupled to hydraulic driven motor to suit water truck

Self Priming to 6 metres

Pump performance: 600 lpm @ 120 kPA    flooded suction
Pump performance: 1000 lpm @ 80 kPA    flooded suction
Pump performance: 1500 lpm @ 40 kPA   flooded suction

Pump connections:  Suction and discharge 100mm FI BSP
Impeller:  Open non clog style impeller
Front mounted clean out port
Mechanical seal: Silicon carbide seal faces
Italian made hydraulic motor
Motor requirements @ 1320rpm – 7.0Kw
Hydraulic requirements: 22cm3/rev , 150bar (7.0kW)

Manufacturer’s warranty:  3 years

Additional information

Weight90 kg
Dimensions60 × 40 × 50 cm

Self Priming Hydraulic Driven Pump
