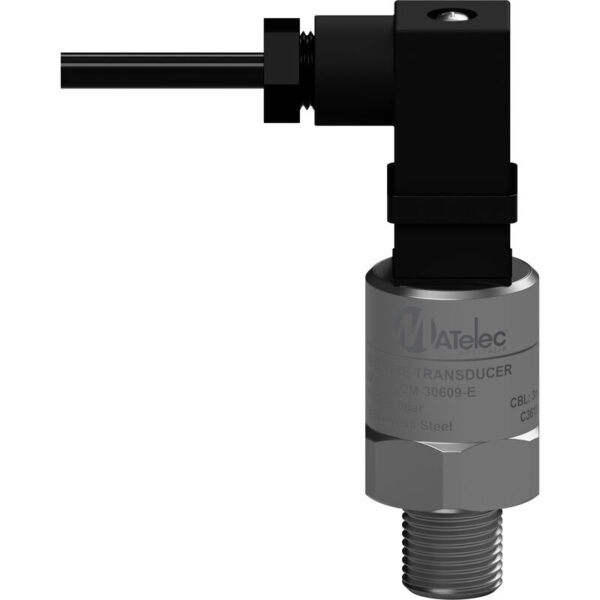

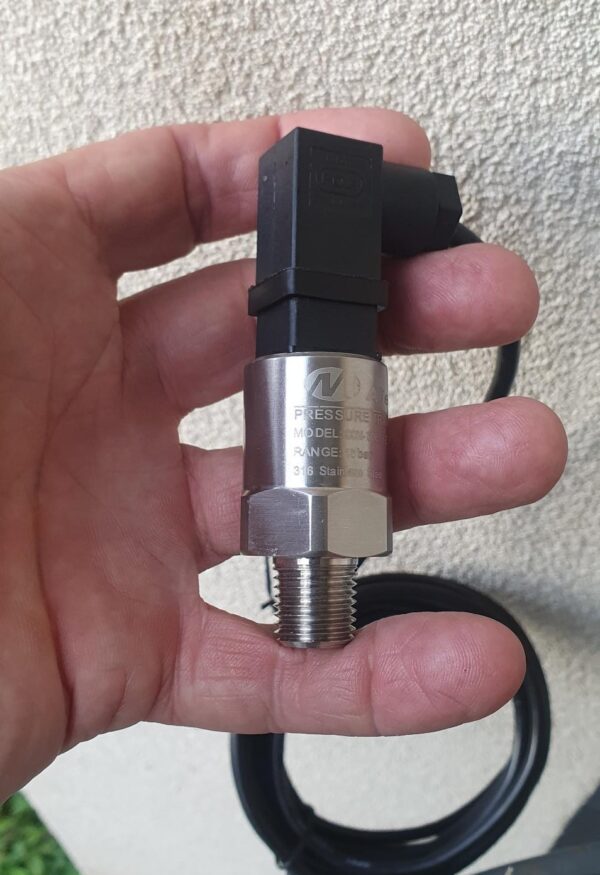

16 Bar Pressure Transducer With 3 Metres Of Cable – COM-30608-E – Brand Matelec – Pressure Transmitter 4-20mA – 4 Bar 10 Bar 25 Bar
$280.00
Pressure Transducers
Designed to be mounted in a pipe to measure pressure, providing a precise 4-20mA reading
Small body diameter
Suitable for use in raw, rain, potable and ground water applications
Designed to be mounted in a pipe to measure pressure, providing a precise 4-20mA reading
Small body diameter
Suitable for use in raw, rain, potable and ground water applications
Specifications
Overload Pressure: 1.5 times full scale
Accuracy: ± 1.0% F.S
Supply Voltage: 12-30Vdc loop powered
Output Signals: 4-20mA analogue
Pressure ratings: 4bar , 10bar, 16bar and 25bar
- Description
- Additional information
- Downloads
Description
Pressure Transducers
- Designed to be mounted in a pipe to measure pressure, providing a precise 4-20mA reading
- Small body diameter
- Excellent repeatability and long term stability
- Excellent anti-interference ability
- Suitable for use in raw, rain, potable and ground water applications
Specifications
- Overload Pressure: 1.5 times full scale
- Accuracy: ± 1.0% F.S
- Supply Voltage: 12-30Vdc loop powered
- Output Signals: 4-20mA analogue
- Response Time: 10ms
- Working Temperature: -20°C – 80°C
- Pressure Connection: NPT 1/4 inch

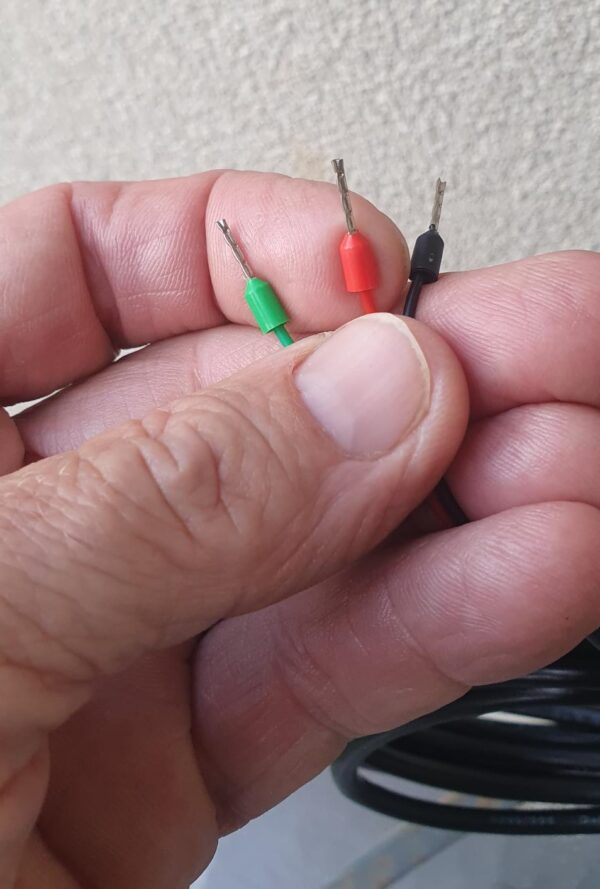

- Electrical Connection: 3 wires
- Protection Rating: IP66
- Housing Material: 316 stainless steel
- Operating Life: >1×10 pressure cycles
Pressure Transducer Range
| Code | Depth Range | Cable Length |
|---|---|---|
| COM-30608-4BAR | 0-4bar (0-400kPa) | 3m |
| COM-30609-E | 0-10bar (0-1000kPa) | 3m |
| COM-30608-E | 0-16bar (0-1600kPa) | 3m |
| COM-30604-E | 0-25bar (0-2500kPa) | 3m |
Manufacturer’s warranty: 2 years
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 0-10 Bar 4-20mA pressure transducer, 0-16 Bar 4-20mA pressure transducer, 0-25 Bar 4-20mA pressure transducer, 0-4 Bar 4-20mA pressure transducer |
