Description

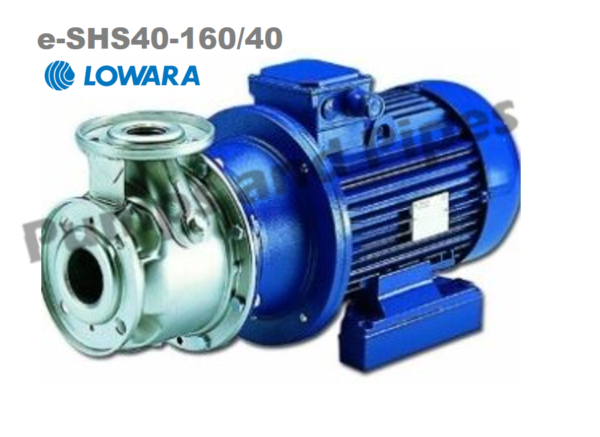

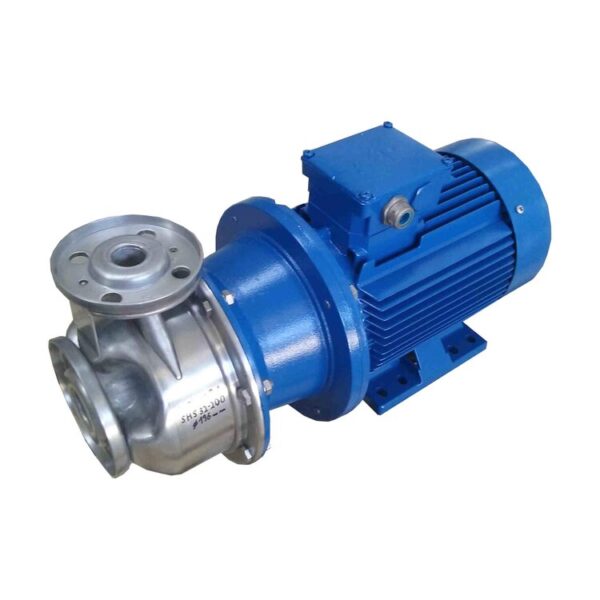

AISI 316 Stainless steel end suction centrifugal pump which is used for industrial and factory water transfer

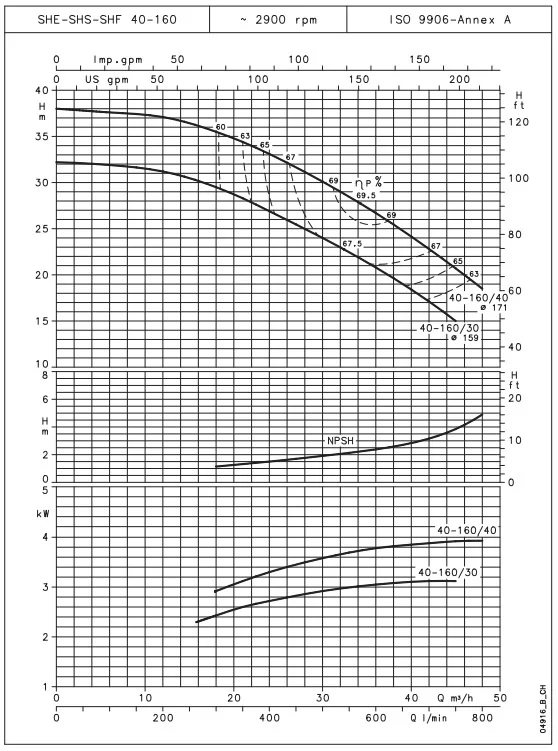

Pump performance:  Shut off head 380 kPa  (50 psi) no flow maximum pressure
300 lpm @ 350 kPa
500 lpm @ 300 kPa
700 lpm @ 230 kPa  end of curve NPSH(r) 6 meters

Material of construction:  SS/SS/SS
Power supply:   4.0kW 415V three phase 50hz FLC 7.6A 2900 rpm
Impeller material: AISI316 stainless steel
Casing material: AISI316 stainless steel
Suction connection:  DIN65 Flanged
Discharge connection:  DIN40 Flanged
Starting method:  DOL , VSD or soft starter
Maximum temperature:  90 deg C

Manufacturer’s warranty:  2 years  Made in Italy
