Lowara 33SV09F220T 22kW Vertical Multistage Pump Replaces SV3012F150T and CR30-120
$15,260.00
Water supply, irrigation, water treatment, water transfer, RO pump
Pump performance: 5.0 lps @ 206 metres
Pump performance: 10.0 lps @ 160 metres
22.0 kW 415/3/50 supply
DIN 65 PN25 65mm round flanges
Manufacturer’s warranty: 2 years Made in Italy
- Description
- Additional information
- Downloads
Description
33SV09F220T is certified by Australian Standard AS4020 for use with drinking water
Pump performance: zero lps @ 215 metres shut off head
Pump performance: 5.0 lps @ 206 metres
Pump performance: 10.0 lps @ 160 metres
- Maximum operating pressure: 40 bar
- Temperature of pumped liquid: from -30°C to 120°C
- Water supply and booster systems
- replacement for DPVF32-120 , SV30-12 and CR32-120

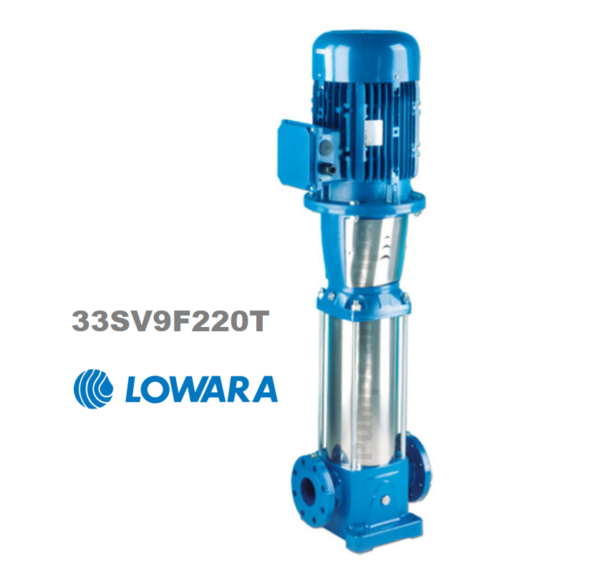

- Lowara 33SV09F220T
- Connections: DIN65 PN25 flanged
- Motor: 15kW 400/3/50 IP56 2 pole IEC flanged
Applications
- Lowara pumps from Italy can be used in many applications including:
- Residential and building supply pumps
- Utility and mains boosting
- Hot water applications
- Water treatment and RO reverse osmosis applications
- Food, chemical and process industry
- Irrigation and boiler feed applications
- AS4020 Drinking water approved, light aggressive fluids
- Manufacturer’s warranty: 2 years Made in Italy
- Lowara pumps from Italy can be used in many applications including:
Additional information
Weight | 240 kg |
---|---|
Dimensions | 50 × 50 × 220 cm |
Brand | Lowara |
