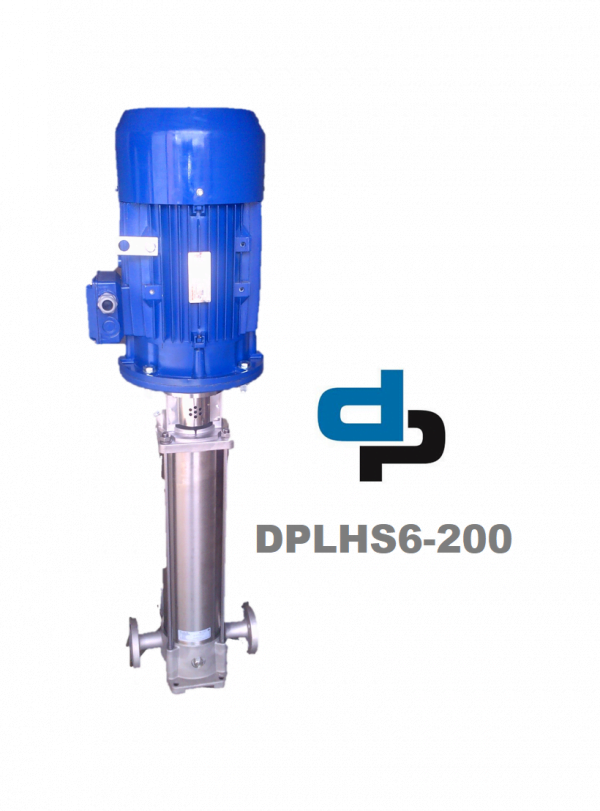

Duty 1.0lps @ 370m DPLHS6-200 High Pressure AISI316 Stainless Steel Multistage For Boiler and RO Applications
duijvelaar high pressure pump range
Boiler feed , Jacking Pump in fire systems and water supply for RO applications
Pump performance: Shut off head @ 400 metres (no flow)
Pump performance: 1.0 lps @ 370 metres
Pump performance: 1.8 lps @ 320 metres
15kW 400/3/50 three phase supply
Manufacturer’s warranty: 2 years
Made in The Netherlands
- Description
- Additional information
- Downloads
Description
duijvelaar pump high pressure range of pumps
The vertical multistage pump series DPLHS is designed for pumping clean liquids.
Suction and discharge of the pump are in-line, making the pump easy to install.
The hydraulic assembly is installed vertically and driven by an electric motor.
All hydraulic parts of the pump are made of stainless steel, making the pump light and extremely suitable for applications that demand high grade materials, such as drinking water applications.
Boiler feed , jacking pump in fire systems and water supply pump for RO applications
Pump performance: Shut off head @ 400 metres (no flow)
Pump performance: 1.0 lps @ 370 metres
Pump performance: 1.8 lps @ 320 metres
Complete AISI316 stainless steel pump end
15kW 400/3/50 three phase supply
Temperature range: -5 to 80degC
AISI316 SS, DN32 PN40 flanged connectors
Manufacturer’s warranty: 2 years
Made in The Netherlands
Additional information
| Weight | 220 kg |
|---|---|
| Dimensions | 180 × 60 × 60 cm |
| Brand | dp pumps |
