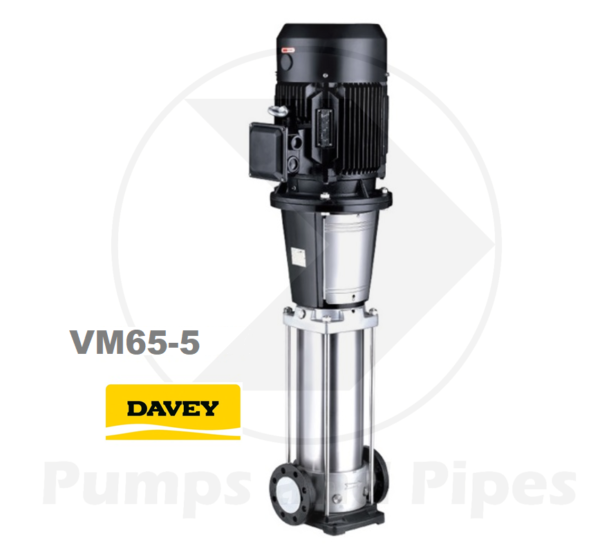

Davey VM65-5A 30.0kW 15lps @ 104m Vertical Multistage Pump

Davey VM65-5A 30.0kW 15lps @ 104m Vertical Multistage Pump

In stock

Vertical multistage centrifugal pump which is used for water supply and irrigation applications

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Pump performance:  900lpm @ 1040kPA  ( 140psi)
AS4020 approved for use in drinking water
Power supply:   30.0kW 415V three phase 50hz FLC  49A
Manufacturer’s warranty:  2 years

SKU: VM65-5

Description

Vertical multistage centrifugal pump which is used for municipal and building water supply, wash down and irrigation applications

Pump performance:  Shut off head 1420 kPA  (190 psi) no flow maximum pressure
Pump performance: 300 lpm @ 1320 kPA
Pump performance: 600 lpm @ 1220 kPA
Pump performance: 900 lpm @ 1040 kPA
Pump performance: 1200 lpm @ 800 kPA


AS4020 approved for use in drinking water

Material of construction:  SS/SS/SS
Power supply:   30.0kW 415V three phase 50hz FLC 49A
Impeller material: AISI304 stainless steel
Suction connection:  DIN100 Flanged
Discharge connection:  DIN100 Flanged
Starting method:  VSD or soft starter
Maximum temperature:  90 deg C
Can be used to replace other brands of multistage pump units

Manufacturer’s warranty:  2 years

Additional information

Weight355 kg
Dimensions200 × 60 × 60 cm
Brand

Davey

VM65 curve

Download

VM65 line drawing

Download

VM65 dimensions

Download

VM motor data

Download
