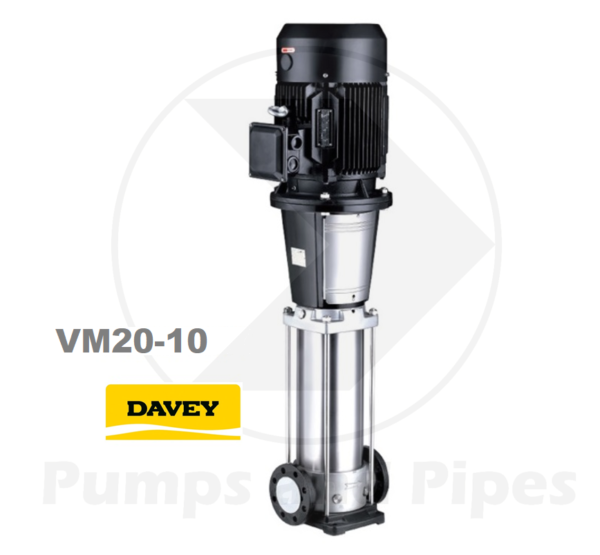

Davey VM20-10/3 11.0kW Vertical Multistage Pump Replaces CR15-120 Lowara SV15-12

Davey VM20-10/3 11.0kW Vertical Multistage Pump Replaces CR15-120 Lowara SV15-12

In stock

Vertical multistage centrifugal pump which is used for water supply and irrigation applications

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Pump performance:  180 lpm @ 1340 kPa
Pump performance:  360 lpm @ 1120 kPa
Pump performance:  450 lpm @ 880 kPa

AS4020 approved for use in drinking water
Power supply:   11.0kW 415V three phase 50hz FLC  23A
Manufacturer’s warranty:  2 years

SKU: VM20-10/3

Description

Vertical multistage centrifugal pump which is used for municipal and building water supply, wash down and irrigation applications

Pump performance:  Shut off head  1400kPa  no flow – maximum pressure
Pump performance:  180 lpm @ 1340 kPa
Pump performance:  360 lpm @ 1120 kPa
Pump performance:  450 lpm @ 880 kPa


AS4020 approved for use in drinking water

Material of construction:  SS/SS/SS
Power supply:   11.0kW 415V three phase 50hz FLC 23A
Impeller material: AISI304 stainless steel
Suction connection:  DIN50 Flanged
Discharge connection:  DIN50 Flanged
Starting method:  VSD or soft starter
Maximum temperature:  90 deg C
Can be used to replace other brands of multistage pump units

Manufacturer’s warranty:  2 years

Additional information

Weight170 kg
Dimensions140 × 50 × 50 cm
Brand

Davey

VM20 curve

Download

VM Dimension table

Download

VM20 pump dimension

Download
