Description

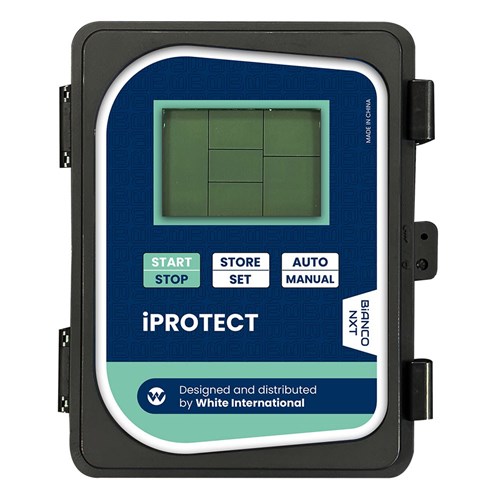

BIA-NXT-PROTECT1-22  is a module intended to control and protect a single pump up to 2.2kW single phase
The user can select a control logic sequence to match their application and enjoy the benefits of superior control and protection for the pump.
There are 3 primary control logic modes:
‘Drainage’ where control concentrated at the source
‘Boosting’ which references pressure switching for control
‘Transfer’ which is a mix of source and destination control
By digitally monitoring the running current, the response time
of the nXt-Protect is superior to traditional analogue overload
methods
Technical Data
Rated voltage  (V) 1 Ph 230V +10/-6%
Max amperage 12 amps
Degree of protection I.P. 65
Working humidity 20% – 90% RH
Power cable & materials – None – bare controller only
Working temperature -25degC to 55 deg C
Unit dimensions (LxWxH) 275 x 200 x 125
Unit weight (net) 1.168 kg
Functions:
Alarm parameters are programmable and in some instances trip and recovery time settings can be altered.
Over voltage
Under voltage
Dry Run (under current)
Overload (over current)
Pump stall
Open phase
Phase reversal
‘Anti-seize’ function in drainage mode
Last 5 error log
NXT Protect has an audible alarm and a flashing screen to indicate an alarm state
Control Inputs:
Switched input – float, pressure switch, temperature switching
Level probe (capacitance type probes
Manufacturer’s Warranty: 2 Years
