Description

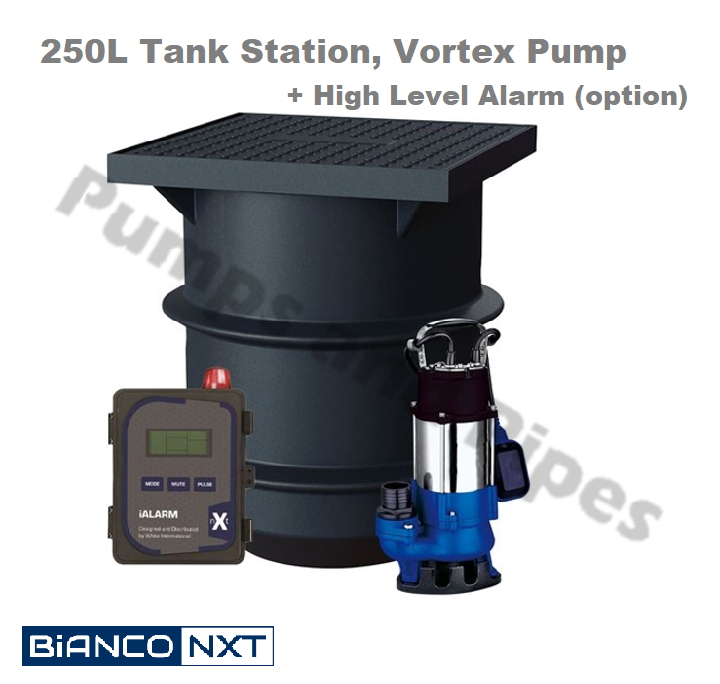

BIA-250PSFB45VAS2-ALM – Vortex Pump Station Kit Including Sump Pump, 250L Tank & Alarm
Pump Specifications: 240V, Single Phase, 0.45kW, 2″ BSPF outlet, 50Hz, Automatic | Float Switch

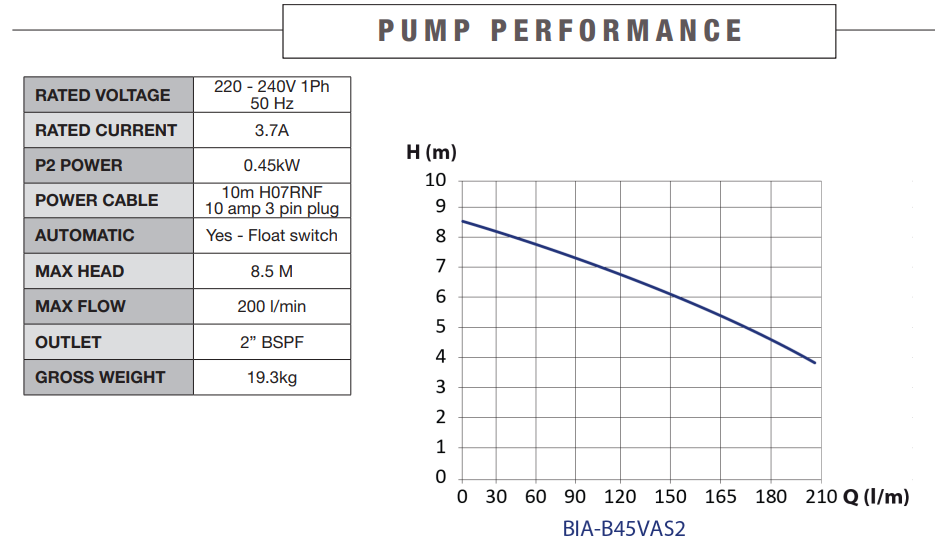

Pump Performance: Max Head – 8.5m | Max Flow – 200l/min | B.E.P – 150l/min @ 6m head
Alarm Data: High Level Alarm, Audible and visual alarm indicator, continuous or intermittent alarm mode
Alarm Specifications: 240V, Single Phase, 50Hz, <1A rated current, 1P54
Construction:
Polyethylene tank
Inlet Pipe to be installed by plumber

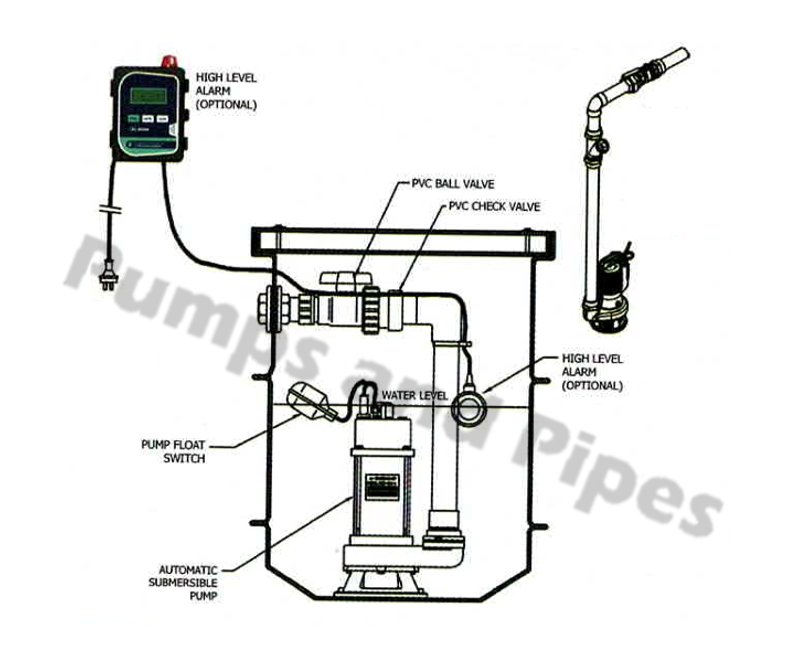

All in-tank fittings incorporated in the packaged pump stations as follows:
Ball and non-return valves, barrel unions
PVC interconnecting pipework
Liquid Handled:
Raw Sewage, trade waste, effluent and stormwater
Configurations:
Free-Standing
Applications:
Able to handle liquids such as storm water, trade waste, effluence and sewage
Granny flats and sheds
Small pump-away applications
Basement Pump outs
Included in station:

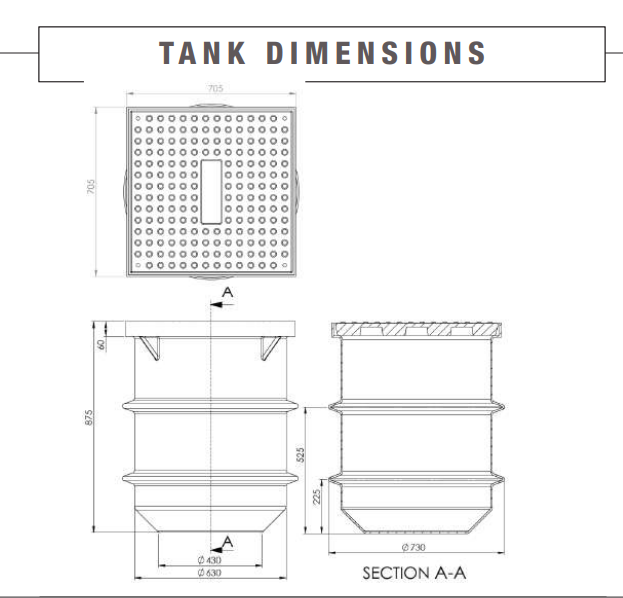

250 litre poly tank
PE Walkover lid (Class A)
DN100 invert seal
Combination ball/swing check valve
Camlock to pump and discharge manifold with flexible hose
6mm stainless-steel lifting chain and 6mm stainless steel dee shackles
2″ tank discharge fitted
High Level Alarm controller (optional)

Manufacturer’s Warranty: 3 Years (Pump) & 1 Year (Tank)
