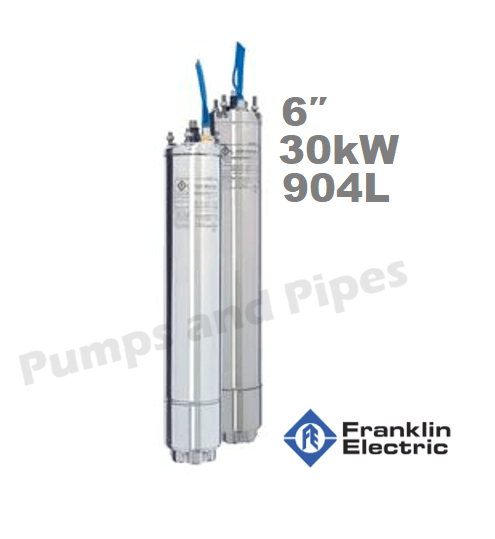

Franklin 6″ 30kW 904L Stainless Steel Submersible Bore Motor Mining Dewatering – 2626177611B

Franklin 6″ 30kW 904L Stainless Steel Submersible Bore Motor Mining Dewatering – 2626177611B

$16,045.00

In stock

$16,045.00

Reviews Summary by AI:

30kW 6″ 904L Stainless Submersible Motor can be installed on all wet ends which include Franklin, Southern Cross, Grundfos, Lowara, Stalker, Goulds, Saer and Everflow bore pumps

AISI 904L  Outside Diameter 144.5mm stainless steel motor
Standard voltage: 380 – 415 V/50Hz  FLC 58 amp
Manufacturer’s warranty:  1 years   Made in USA

SKU: 2626177611B

Description

30kW 6″ 904L Stainless Submersible Motor can be installed on all wet ends with Spline Coupling.
Pump ends manufacturer’s include which include Franklin, Southern Cross, Grundfos, Lowara, Stalker, Goulds, Saer and Everflow.

Technical Specifications:

  • 30.0 kW 6″ NEMA flange, Outside Diameter 144.5 mm
  • AISI 904L stainless steel motor
  • Starts per hour: max. 20 vertical or horizontal installation
  • Standard voltage: 380 – 415 V/50Hz  FLC 58 amps
  • Voltage tolerance 50 Hz: 415 Volt AC -10% / +6%
  • Other voltages: 230V, 690V, 1000V 50Hz
  • Insulation: Class F Rated ambient temperature: 30°C ,Cooling flow: min. 0.5 m/s
  • Single Motor lead in 4 meter length (KTW approved)
  • Types of starting Soft Starter, VSD or VFD, Auto Transformer (please call to discuss)
  • Motor protection: Select thermal overloads according to EN 60947-4-1, trip class 10 or 10A, trip time <10 s at 5 x IN

Please call for pricing, more information or to discuss

Manufacturer’s warranty:  1 years   Made in USA

Additional information

Weight100 kg
Dimensions15 × 15 × 130 cm
Brand

Franklin

6inch Rewindable Data

Download
