Description

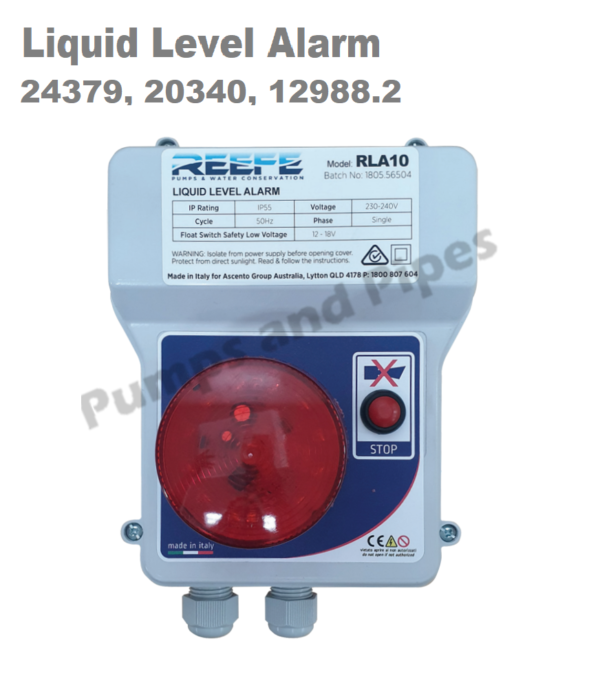

The Liquid Level Alarms are designed to provide warning indication when a storage tank is either empty or full.
The buzzer can be muted via a mute button.
If not muted the audible buzzer will continue to run.
The visual and audible alarms will continue to remain on, until the alarm condition is resolved.
A standard feature of the Level Alarm is a ‘Voltage Free’ (5 amp rated) output for connection to auxiliary devices.
Controller can be installed up to 50m from the tank being monitored. Float switch cabling is ‘safe’, low voltage circuitry.
Warning indication is determined by a float switch. Warnings are Audio (buzzer) and Visual (LED Pilot Light and / or Strobe).
FEATURES & BENEFITS:
Warning indication for storage
Ideal for effluent, greywater or rain water tanks
Suitable for below or above ground tanks
Supplied with 10m float switch standard (3m, 5m or 20m float)
Controller can be installed up to 50m from tank (longer cable required on float switch)
Safe 12V low voltage cabling on float switch
Can be installed for High Level or Low Level alarms
Mute button to silence alarm
IP55 enclosure for outdoor installation
Audible Alarm sound level is 90dB
