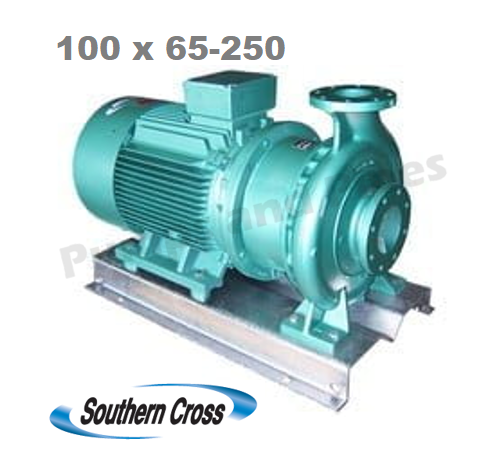

100×65-250 50HP 37kW Southern Cross Starline Motor Pump – MGD16A-F and MGD16J-F

100×65-250 50HP 37kW Southern Cross Starline Motor Pump – MGD16A-F and MGD16J-F

$5,580.00$6,580.00

In stock

$5,580.00$6,580.00

Clear
View cart

Pentair Southern Cross end suction centrifugal pumps

Flow rate:  25 lps @ 80 meters  (19,800 gph @ 800 kPA)
Flow rate:  35 lps @ 73 meters  (27,600 gph @ 730 kPA)
Southern Cross prices will increase between 10% – 15% from June 1 2022

Motor specifications:  37 kW 415V three phase FLC 60 amps 2900 rpm
Material of Construction:  CI/CI/SS and CI/SS/SS
Pricing for complete pump and galv base

Manufacturer’s warranty:  2 years

SKU: MGD16A-F

Description

Pentair Southern Cross end suction centrifugal pumps are high quality pump made to international standards and performance.
Used in water transfer, water supply, irrigation and building/factory water supply applications

Flow rate:  25 lps @ 80 meters  (19,800 gph @ 800 kPA)
Flow rate:  35 lps @ 73 meters  (27,600 gph @ 730 kPA)
Flow rate:  45 lps @ 61 meters  (35,600 gph @ 610 kPA)  End of curve

Motor specifications:  37 kW 415Vac three phase FLC 60 amps IP55 2900rpm
Starting method:  Soft starter, Variable Speed Drive or Start delta starting
Material of Construction:  CI/CI/SS and CI/SS/SS
Temperature range:  0 deg C – 70 deg C
Galvanised pressed steel or fabricated base is not included in pricing however can be supplied as an option
Pricing for complete pump and galv base

Manufacturer’s warranty:  2 years

Additional information

Weight320 kg
Dimensions120 × 60 × 80 cm
Brand

Southern Cross

Size

100×65-250 CI/CI/SS 37kW 2900rpm motor pump, 100×65-250 CI/CI/SS 37kW 2900rpm motor pump with galv base, 100×65-250 CI/SS/SS 37kW 2900rpm motor pump, 100×65-250 CI/SS/SS 37kW 2900rpm motor pump with galv base

Motor Electrical Data

Download

Dimensions Starline 2950rpm

Download

ISO flange dimensions

Download
